3.7VAC Toroidal Transformer Core Permalloy 13MW Min Output

Product Categories
Hefei Hemei Electronics Technology Co., Ltd
Contact Now

3.7VAC Toroidal Transformer Core Permalloy 13MW Min Output

Brand Name : HEMEI

Model Number : 10*20mm

Certification : CE

Place of Origin : Hefei

MOQ : 100

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 1000pcs/month

Packaging Details : Standard Carton

Material : Permalloy

Primary Input : 10A

Output Power : 13MW Min

Voltage : 3.7VAC

Coil Structure : Toroidal

Usage : Protection, Measurement

Contact Now

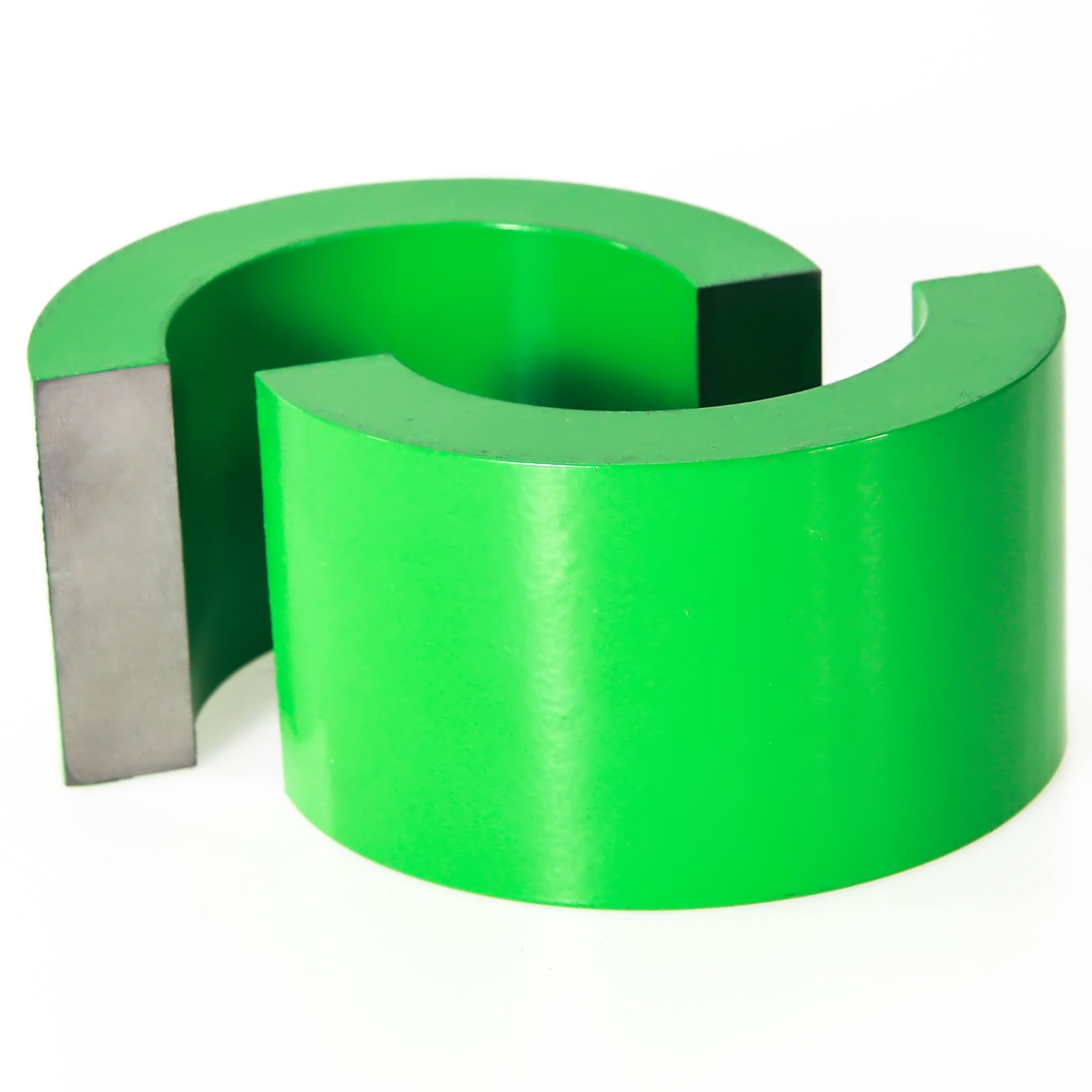

Toroidal Transformer Core Permalloy 3.7VAC

Toroidal Core Iron-Nickel Alloy For Current Transformer


Parameters

Size(mm) Input current (A) Output Power(mW)
55*65*5 10 13mW min
55*75*10 5 38mW min
55*75*12 5 45mW min
48*68*15 5 50mW min
55*75*20 3 45mW min


parameter:

SIZE Input Current Turns ratio Workload Voltage Output Power
55*65*5mm 10A 900T 1K 3.7V 13mW
55*75*10mm 5A 400T 400Ω 3.9V 38mW
54*78*12mm 5A 500T 1K 7V 49mW
67*47*15mm 5A 400T 750Ω 6V 48mW
55*75*20mm 3A 250T 500Ω 4.3V 36mW
95*75*20mm 3A 5A 250T 400Ω 300Ω 3.4V 4.5V 28mW 67mW
85*55*25mm 3A 5A 250T 600Ω 500Ω 5.4V 7.6V 48mW 115mW
88*67*10mm 5A 400T 500Ω 4.5V 40mW
72*47*27mm 3A 5A 250T 600Ω 500Ω 5.6V 7.7V 52mW 118mW
63*50*12mm 5A 400T 300Ω 2.9V 28mW
58*42*8mm 5A 400T 300Ω 2.7V 24mW
58*45*20mm 5A 400T 300Ω 5.3V 46mW
50*35*15mm 5A 400T 400Ω 3.7V 34mW
48*38*10mm 5A 900T 1K 4.7V 22mW
43*33*6mm 5A 900T 600Ω 2.6V 11mW
40*25*15mm 5A 400T 500Ω 5V 50mW
43*33*9mm 5A 900T 1K 4.5V 20mW

3.7VAC Toroidal Transformer Core Permalloy 13MW Min Output
